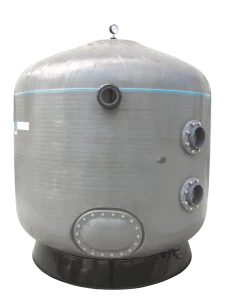

SMDD 1200 Filter 4 Bar - 90mm connections (420mm x 320mm service hatch)

Enhanced deep filter bed filtration and increased dirt capacity. The filter’s 1000mm media bed ensures that finer dirt particles and colloidal substances are retained to a far greater level than a filter with a shallower bed depth. The filter's greater bed depth permits efficient use of mixed bed filter media and water treatment media such as granular activated carbon.

Features:
• Fibreglass wound tank, UV and corrosion resistant
• Hydraulically balanced laterals to maximise water flow and filtration
• Optional six position multiport valve with sight glass and quick connect half unions
• Available in filter areas of 0.87m² to 3.14m²
• Pressure rated at 2.5 bar (36 psi), 4 bar (58 psi), 6 bar (87psi) and up to 8 bar (116 psi)
• Maximum working temperature of 50°C (122°F)

Download Data Sheets
