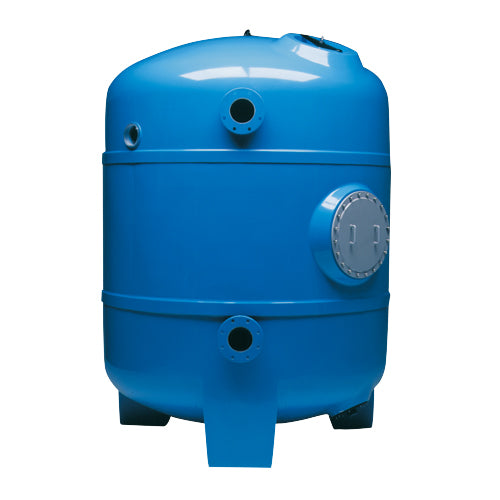

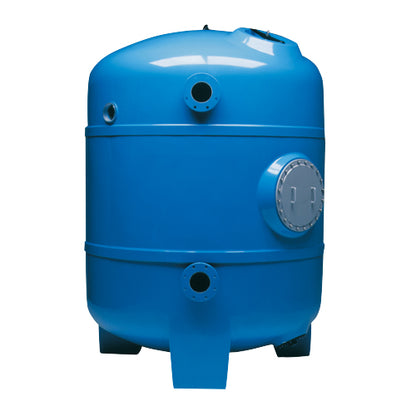

Calplas DPS/420-2800 AFM Verticle Nozzle Plate Filter with Hatch & Sight Glass - 1.2m Deep Bed

Industrial quality polyester filter, color blue RAL 5015.
High bed AFM filter with cap bottom, filter bed height 1200mm.
Service manhole ø 420mm (position 7) and sight glass (position 2), mounted in filter.
Working pressure maximum 2.5 bar, test pressure 3.75 bar (available on request with working pressure up to 6 bar).
Temperature resistant up to 40°C, ozone resistance on request.
Available on request with a lower connection port under the cap base (according to DIN standard, type 2).
Fitted with a steel coated lid, excluding pressure gauge and venting 1” F (connection provided in filter).
Exclusive backwash valve/front tube system, optional automatic or manual selection.
Equipped with a lifting eye for safe placement.
