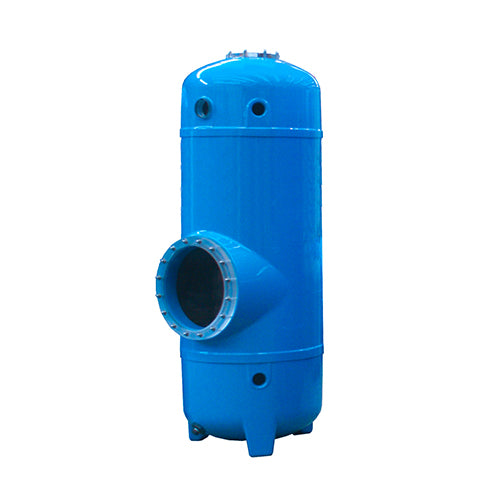

Calplas DCH/P 415 Commercial Filter (2" Connections)

ndustrial quality polyester filter, color blue RAL 5015.
High bed AFM filter with cap bottom, filter bed height 1200mm (available on request with filter bed height 1500mm).
Service manhole with metal cover, transparent cover optional.
Equipped with sight glass.
Temperature resistant up to 40°c, ozone resistance on request.
Available on request with a lower connection port under the cap base (according to DIN standard, type 2).
Maximum operating pressure 2.5 bar, test pressure 3.75 bar.
Including transparent lid with 3/4?F for vent.
Excluding pressure gauge and vent.
Exclusive backwash valve/front tube system, optional automatic or manual selection.
This model filter is not in stock as standard, take into account a delivery time of 4 to 6 weeks.
